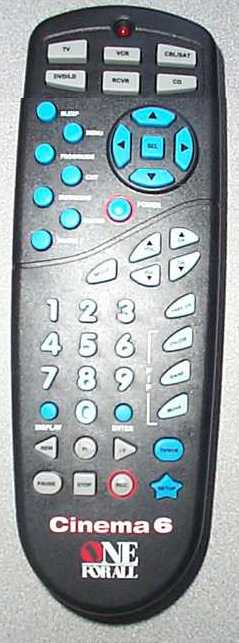

How to Program the One For AllŪ URC-6200 Remote

Click here for setup codes.

Table of Contents:

    Setting Up The Device Keys
  1. Programming Setup Codes
  2. Searching For Setup Codes
  3. Blinking Back the Setup Code
  4. Redefining a Device Key
  5. Resetting A Device Key

    6. Setting Up and Using The Remote

  6. Volume Punch Through
  7. Restoring Volume Default
  8. Using the Sleep Key
  9. Programming Macros

    10. Advanced Functions

  10. Copy One Key To Another
  11. Assigning Advanced Codes

    12. Clearing Out The Remote

  12. Clearing Out Any Button On The Remote
  13. Deleting Macros
  14. Clearing Out All Assigned Keys
  15. Restoring Factory Defaults
  16. Scrambled Keypad

    17. General

  17. Fixing Worn Out Buttons

    Setting Up The Device Keys

  1. Programming Device Codes

    2. After getting the proper codes from your manual or Customer Service, use the following instructions to enter them into your remote.

    1. PRESS the button for the device you want to program, (TV, VCR, CABLE, etc.), then RELEASE.
    2. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    3. ENTER the 4 digit code for your brand.
    4. You should receive 2 quick flashes after entering your code.
    5. PRESS the POWER button to test the code. (On VCR, LD, and CD players use PLAY)

     Back to Table of Contents

  2. Searching For Your Setup Code

    3. If you have tried all of the set-up codes for your brand of equipment ,or your brand is not listed, and you are still not able to get the unit to respond, try the following procedure to search for your code.

    If you don't find a code that works, the remote will flash four times when you reach the end of all the codes for this device type.

    1. PRESS the button for the device you want to program, (TV, VCR, CABLE, etc.), then RELEASE.
    2. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    3. ENTER 9-9-1 (two blinks on the remote)
    4. ALTERNATE slowly between the POWER key and the DEVICE (TV, VCR, CABLE, etc.) button until your device turns off. (On VCR, LD, and CD players use PLAY instead of POWER)
      Make sure that the remote is pointed at your device during the search, You may have to press this sequences of buttons up to 100 times to search the entire library of codes.
    5. When your device turns OFF, PRESS the SETUP button and RELEASE it to lock in the code for your device.

     Back to Table of Contents

  3. Blinking Back the Code:

    1. PRESS the device, (TV, VCR, CABLE, etc.), button - RELEASE
    2. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    3. PRESS 9 - 9 - 0.
    4. PRESS 1, carefully COUNT the number of blinks. (1st digit)
    5. PRESS 2, carefully COUNT the number of blinks. (2nd digit)
    6. PRESS 3, carefully COUNT the number of blinks. (3rd digit)
    7. PRESS 4, carefully COUNT the number of blinks. (4th digit)

    If the remote DOES NOT blink it means the number is 0.
    This is your 4-digit setup code.

     Back to Table of Contents

  4. Redefining a Device Key

    5. If you wish to use a device key for something other than it's intended purpose, you can change it's functionality. For example, if you have two VCR's but don't have a cable box, you could change the CABLE button to be a second VCR button.

    1. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    2. PRESS 9 - 9 - 2.
    3. PRESS the "from" DEVICE, (ie, the one you are copying from)
    4. PRESS the "to" DEVICE (ie, the one you want to replace).

    Example: If you want the AUX key to be a VCR key:
    "SETUP" (2 blinks) 9 - 9 - 2, VCR (you want to copy VCR)
    Then AUX (you want to replace AUX).

     Back to Table of Contents

  5. Resetting a Device Key

    6. Use this procedure to return a device key to it's original function.

    1. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    2. PRESS 9 - 9 - 2.
    3. PRESS the device button twice. - Two blinks.

    The device key is now returned to it's original mode.

     Back to Table of Contents

    Setting Up and Using The Remote

  6. Volume Punch Through

    7. This sets Volume to work for one device in all modes.
    For example, the TV volume will work in the cable and VCR modes.

    1. PRESS the device, (TV, VCR, CABLE, etc.), button - RELEASE
    2. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    3. PRESS 9 - 9 - 3.
    4. PRESS the device key you would like the volume to come from.
    5. Two blinks.


    NOTE #1: This only sets volume in the TV, VCR, CABLE, or SAT mode.
    NOTE #2: On some remotes (such as the 15-1994), you can only punch the volume though to the TV, this was fixed on newer remotes (such as the Cinema 7)

    Remember, if the volume punch through doesn't meet your needs, you can always program the volume controls using KEY MOVES. For instance, if you want the volume controls in CD mode to work your amplifier which is on the AUX button, then you would use the 994 command and move the 3 volume controls from AUX to CD. See the KEY MOVES section for more info.

     Back to Table of Contents

  7. Restore Volume Default

    8. Use this to get the original volume to work on each device.
    1. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    2. PRESS 9 - 9 - 3
    3. PRESS the VOLUME+ key, you will get two blinks.


    Now the volume is set for all original devices.

     Back to Table of Contents

  8. Using the Sleep Key

    9. The sleep key allows you to access the sleep timer of your original device. If your device has a built-in sleep timer, this will normally be mapped to the SLEEP button of your remote, if your original device does not have abuilt-in sleep timer, the SLEEP button will use the remote's own built-in sleep timer. Refer to the original manual for your device to work it's timer, or use the following instructions to use the remote's built-in timer.

    1. PRESS the device, (TV, VCR, CABLE, etc.), button - RELEASE
    2. PRESS the SLEEP key once to set the built in sleep timer for 15 minutes.
    3. Each additional PRESS of the SLEEP key will add 15 more minutes to the sleep timer, up to a maximum of 60 minutes.
    4. To deactivate the built-in sleep timer, PRESS any key other than SLEEP.


    NOTE: Once you have activated the remote's built-in sleep timer, you must keep the remote pointed directly at the component.

     Back to Table of Contents

  9. Programming Macros

    10. This will allow you do do several functions with just the touch of ONE key. A macro can hold up to 15 keypresses.

    1. PRESS the device, (TV, VCR, CABLE, etc.), button - RELEASE
    2. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    3. PRESS 9 - 9 - 5, two flashes.
    4. PRESS the key that you want the Macro to be on
    5. PRESS the sequence of keys you want the remote to do
    6. PRESS "SETUP" and wait for two blinks - RELEASE.

    When you hit the key you put the macro on it will automatically start the sequence.

    NOTE: Some remotes have buttons specially designed to hold macro's, but macro's can actually be assigned to any button, just remember that the macro will be assigned to this button in all device modes.

    If you placed a macro on a button that you wish to restore to it's original function under certain device modes, you can re-program the button using the advanced codes.

    NOTE2: Macros cannot be programmed to the device buttons, the SETUP button, SLEEP button, or the FAV/SCAN button.

     Back to Table of Contents

    Advanced Functions

  10. Copy One Key To Another

    1. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    2. PRESS 9 - 9 - 4.
    3. PRESS the DEVICE and the FROM button
    4. PRESS the DEVICE and the TO button - two Blinks

    EXAMPLE: To take the volume from a TV and put it in the VCR mode,
    it would be: SETUP - 9 - 9 - 4 -TV - VOL UP - VCR- VOL UP - two blinks.
    You would have to do the same process for VOL DOWN and MUTE.
    NOTE: To assign as advanced code to a 'shift' key, simply press SETUP before pressing the key in step 4 above.

    NOTE2: Functions cannot be copied to the device buttons, the SETUP button, SLEEP button, or the FAV/SCAN button.

     Back to Table of Contents

  11. Assigning Advanced Codes

    1. PRESS the device, (TV, VCR, CABLE, etc.), button - RELEASE
    2. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    3. PRESS 9 - 9 - 4.
    4. PRESS the SETUP button and then the three digit advanced code.
    5. PRESS the button you wish to use for that function - Two Blinks.
    NOTE: To assign an advanced code to a 'shift' key, simply press SETUP before pressing the key in step 5 above.

    NOTE2: Advanced codes cannot be programmed to the device buttons, the SETUP button, SLEEP button, or the FAV/SCAN button.

     Back to Table of Contents

    Clearing Out The Remote

  12. Clearing Out Any Button On The Remote

    1. PRESS the device, (TV, VCR, CABLE, etc.), button - RELEASE
    2. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    3. PRESS 9 - 9 - 4
    4. PRESS the button you want to clear twice. - Two blinks.


    NOTE: To deleted a 'shift' key, press SETUP between the two presses of the button that you want to clear. EXAMPLE: To clear shift/play in VCR mode:

    1. PRESS the VCR device button - RELEASE
    2. PRESS and HOLD SETUP until the red LED flashes twice, then RELEASE.
    3. PRESS 9 - 9 - 4
    4. PRESS PLAY - RELEASE
    5. PRESS SETUP - RELEASE
    6. PRESS PLAY - RELEASE - Two blinks.

     Back to Table of Contents

  13. Deleting Macros

    1. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    2. PRESS 9 - 9 - 5
    3. PRESS the macro key to be cleared.
    4. PRESS SETUP and wait for two blinks - RELEASE.

     Back to Table of Contents

  14. Clearing Out All Assigned Keys

    1. PRESS the device, (TV, VCR, CABLE, etc.), button - RELEASE
    2. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    3. PRESS 9 - 8 - 0 -- Two blinks.


    NOTE: This will not clear the codes assigned to the device buttons.

     Back to Table of Contents

  15. Restoring Factory Defaults

    1. PRESS and HOLD the SETUP button until the red LED flashes twice, then RELEASE.
    2. PRESS 9 - 8 - 1 -- Two blinks.


    NOTE: This will erase all key moves, learned functions, device settings, etc. If the remote is an upgradeable remote, and has codes added, this will delete those codes also.

     Back to Table of Contents

  16. Scrambled Keypad

    17. Sometimes it seems that the keypad is "scrambled". Functions like channels, volume, or numbers are not where they should be.

    If your remote seems to be acting this way, try the following proceedure:

    1. PRESS the device,(TV,VCR,CABLE,etc.), button - RELEASE
    2. PRESS and HOLD the MAGIC button until the green LED flashes twice, then RELEASE.
    3. ENTER 9-7-3 (two blinks) (for some remotes, try 9-7-4)
    4. Try the functions on the remote

    If the keypad continues to act "scrambled", you may:

     Back to Table of Contents

    General

  17. Fixing Worn Out Buttons:

    18. If a button stops working due to over use, it is possible to fix it. There is a product that you can get from most auto part stores made by Loctite called "Quick Grid Rear Window Defogger Repair Kit". It is a conductive fluid usually used to fix rear window defrosters in cars. To fix your remote, open up the casing and paint the fluid on the base of the buttons that are not working effectively, et it dry, and it should work again, good as new!

     Back to Table of Contents
